Easy service and bearing shell replacement
Features

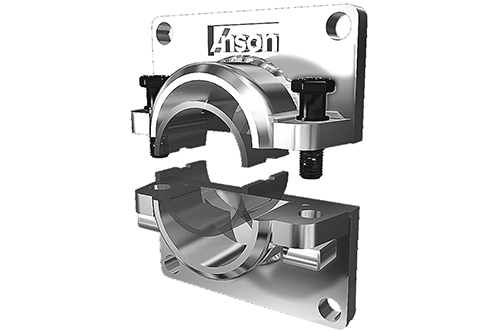

Heavy duty 100% steel 2 piece construction
Ideal for side mount applications that are slow turning and heavily loaded.
Same unique feature of 2500 series
Roll out replacement liners available in babbitt, urethane, zinc aluminum or bronze with the same easy installation as the 2500 series.
All fabricated steel construction
Easy change bearing shells
Shell Materials: Urethane, Babbitt, Zinc Aluminum, Bronze
Dimensions In Inches
| Model No. | Shaft Dia. | A | B | C | D | E | Bolt Dia. |
| B77-115 | 1 15/16 | 7 | 2 3/4 | 11/16 | 5 | 7/8 | 5/8 |
| B77-207 | 2 7/16 | 8 | 3 3/8 | 13/16 | 6 | 7/8 | 3/4 |
| B77-215 | 2 15/16 | 8 | 3 3/8 | 13/16 | 6 | 7/8 | 3/4 |
| B77-307 | 3 7/16 | 10 | 3 7/8 | 15/16 | 8 | 7/8 | 7/8 |
| B77-315 | 3 15/16 | 10 | 3 7/8 | 15/16 | 8 | 7/8 | 7/8 |
| B77-407 | 4 7/16 | 14 | 5 | 1 1/16 | 12 | 1 1/4 | 1 |
| B77-415 | 4 15/16 | 14 | 5 | 1 1/16 | 12 | 1 1/4 | 1 |
Dimensions In Millimeters
| Model No. | Shaft Dia. | A | B | C | D | E | Bolt Dia. |
| B77-115 | 52 | 178 | 70 | 18 | 127 | 22 | M16 |
| B77-207 | 62 | 203 | 86 | 21 | 152 | 22 | M20 |
| B77-215 | 75 | 203 | 86 | 21 | 152 | 22 | M20 |
| B77-307 | 87 | 254 | 98 | 24 | 216 | 22 | M22 |
| B77-315 | 100 | 254 | 98 | 24 | 216 | 22 | M22 |
| B77-407 | 112/td> | 355.6 | 127 | 27 | 304.8 | 31.75 | M24 |
| B77-415 | 125/td> | 355.6 | 127 | 27 | 304.8 | 31.75 | M24 |
