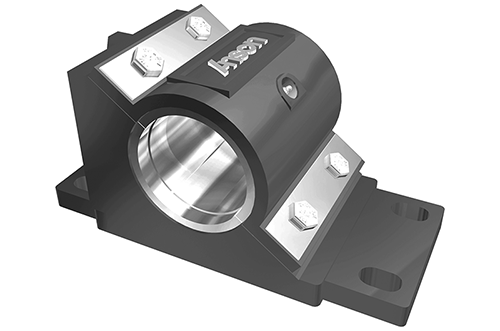

Anson 5500 SERIES ANGLE SPLIT BEARING

In applications where an angle split bearing must be used Anson has come up with the 5500 series 40 degree angle split.

Features

100% Steel Construction

Anson’s unique rollout shell design. Designed for not only simple but also economical replacement

Roll out replacement liners are available in babbit, urethane, zinc, aluminum or bronze with the same easy installation as the 2500 series

B55-515 (1)

5500 SERIES ANGLE SPLIT
(Specifications)

Shaft
Size
Part
No.
A
B C
D
MIN
D
MAX
E
F
Bolt Dia
G H J M
3 7/16 B55-307 7 13 5 10 1/16 10 15/16 2 3/4 3/4 1 1/4 1 1/2 7 1/8 3 1/2
3 15/16 B55-315 8 14 3/4 5 1/2 11 7/16 12 9/16 3 3/4 1 3/8 1 5/8 7 1/2 3 3/4
4 7/16 B55-407 9 16 1/2 6 1/4 12 15/16 14 1/16 3 1/2 7/8 1 1/2 1 3/4 8 1/2 4 1/8
4 15/16 B55-415 10 18 7 14 5/16 15 11/16 4 7/8 1 5/8 1 7/8 9 3/16 4 1/2
5 7/16 B55-507 11 19 3/4 8 15 1/16 16 7/16 4 1/2 1 1 7/8 2 10 1/4 5
5 15/16 B55-515 12 20 1/2 8 1/2 15 13/16 17 3/16 5 1 1/8 1 7/8 2 1/8 11 1/16 5 1/2
6 7/16 B55-607 14 22 9 1/2 17 3/16 18 13/16 5 1/2 1 1/8 2 2 1/4 12 1/8 6
7 B55-700 14 23 10 18 5/16 19 11/16 6 1 1/4 2 2 3/8 13 6 1/2
8 B55-800 16 26 10 20 11/16 22 5/16 6 3/4 1 3/8 2 1/4 2 1/2 14 1/16 7
9 B55-900 16 29 10 1/2 22 24 6 1 1/2 2 3/4 2 3/4 14 7/8 8
